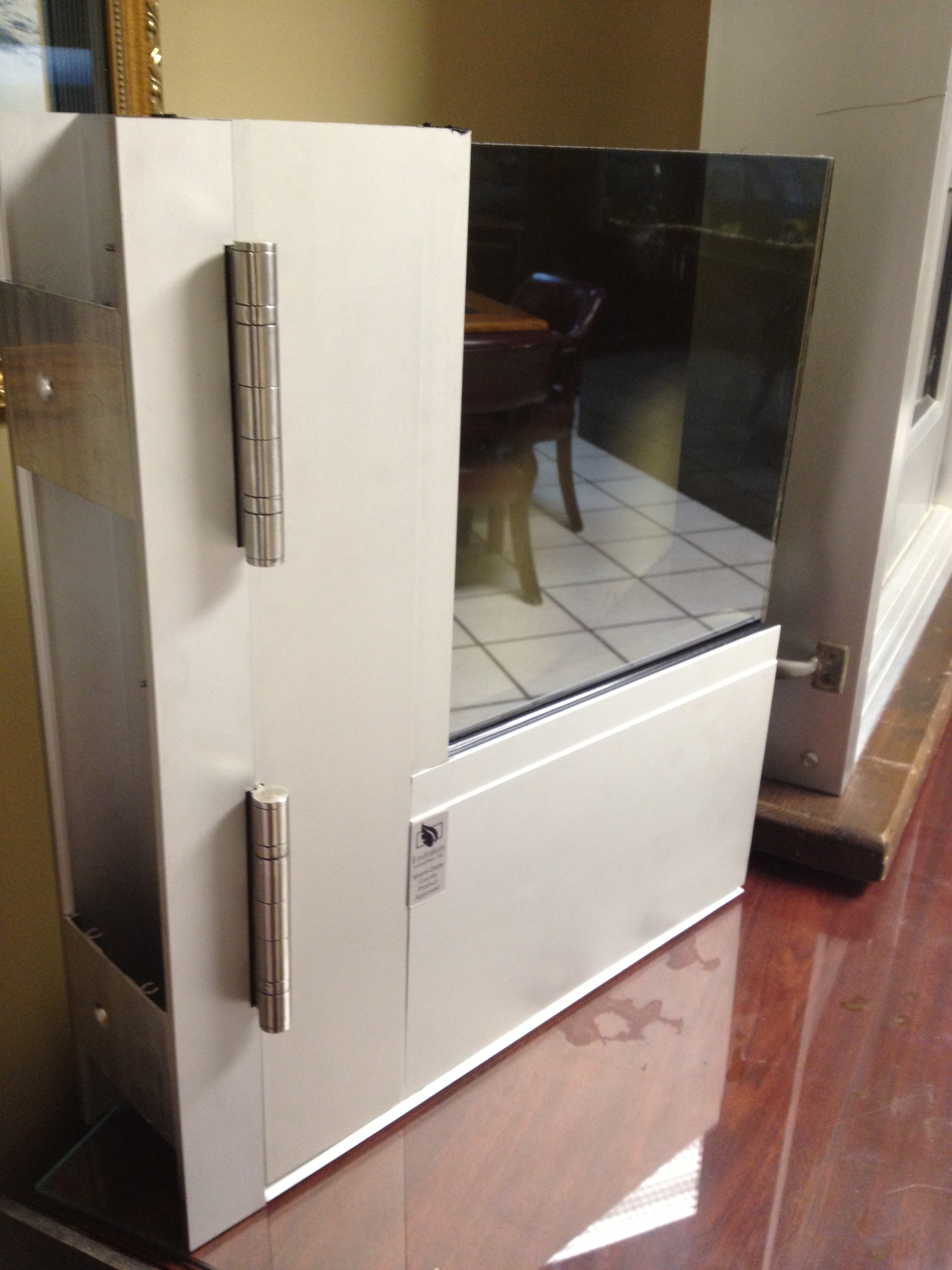

PrivacyVue® IMPACT – Storefront

PrivacyVue® IMPACT is the ONLY high performance fixed glazing system that offers a hurricane impact approved switchable glass option (FL Bldg Code Approval #19002).

It is thermally broken for superior energy savings and is a unitized pre-glazed system that yields higher quality control and saves field labor.  The PrivacyVue® IMPACT system is the result of an engineering and testing collaboration with Miami based Enviralum Industries Inc. and their highly successful ENV-450 system.  The ENV-450 has been engineered to perform at high design pressures while remaining price competitive and snaps seamlessly to the ENV-350 Medium Stile Door.





Max Panel Sizes:

• 4’ x 8’ panels at +/-80 psf without reinforcement

• 4’ x 9’ panels at +/- 85 psf with aluminum reinforcement

• 4’ x 10’ panels at +/-110 psf with steel reinforcement

• 5’ x 10’ single panel at +/-100 psf

• Water Rating of 15 psf



Glass Options:

• 1 5/16” Insulated, laminated units for impact w/ PrivacyVue switchable glass



Finish Options:

• White powder coat

• Bronze anodized

• Clear anodized

• Kynar is optional w/ color matching available

• Custom Cladding (stainless steel, etc)

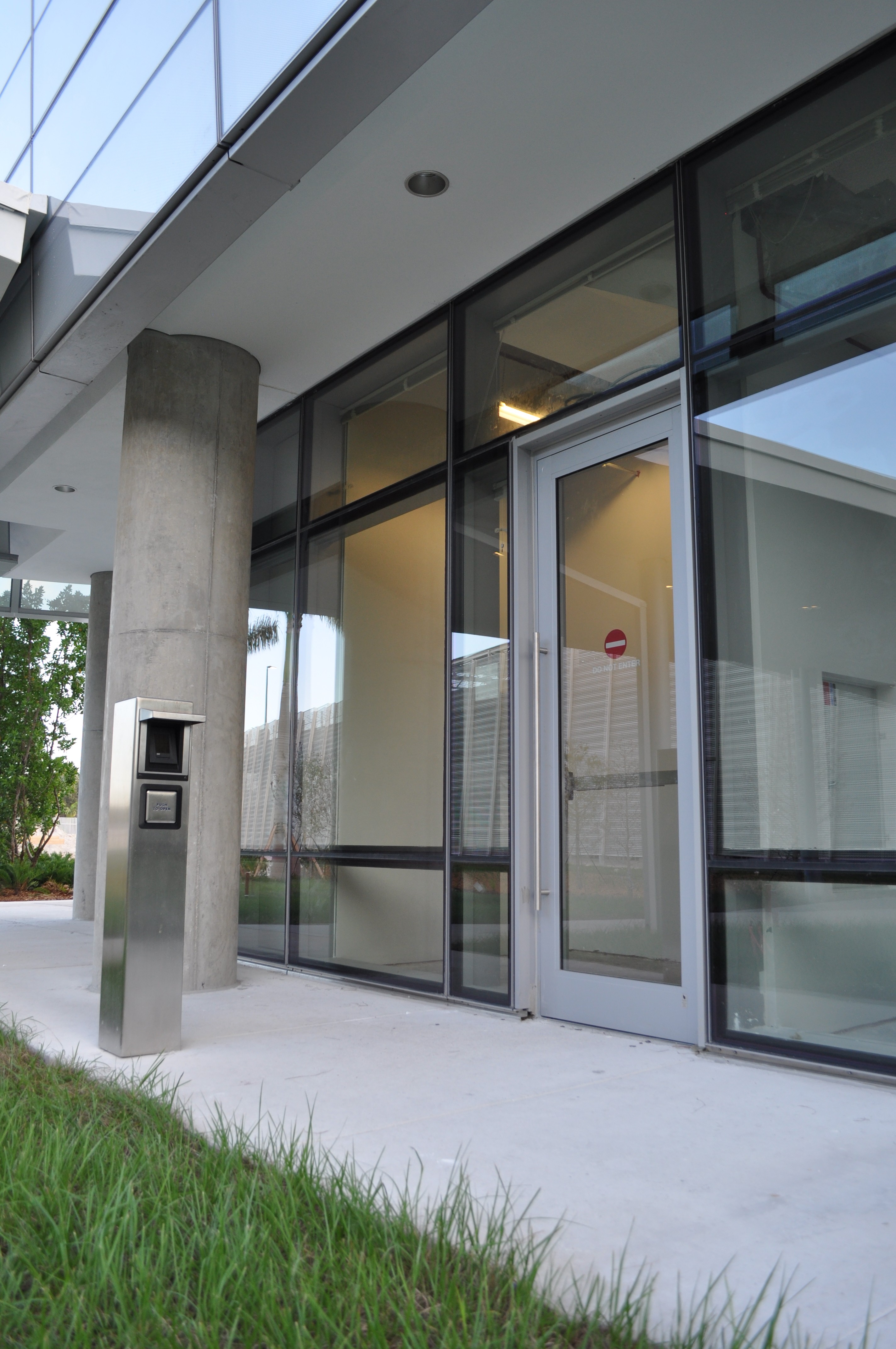

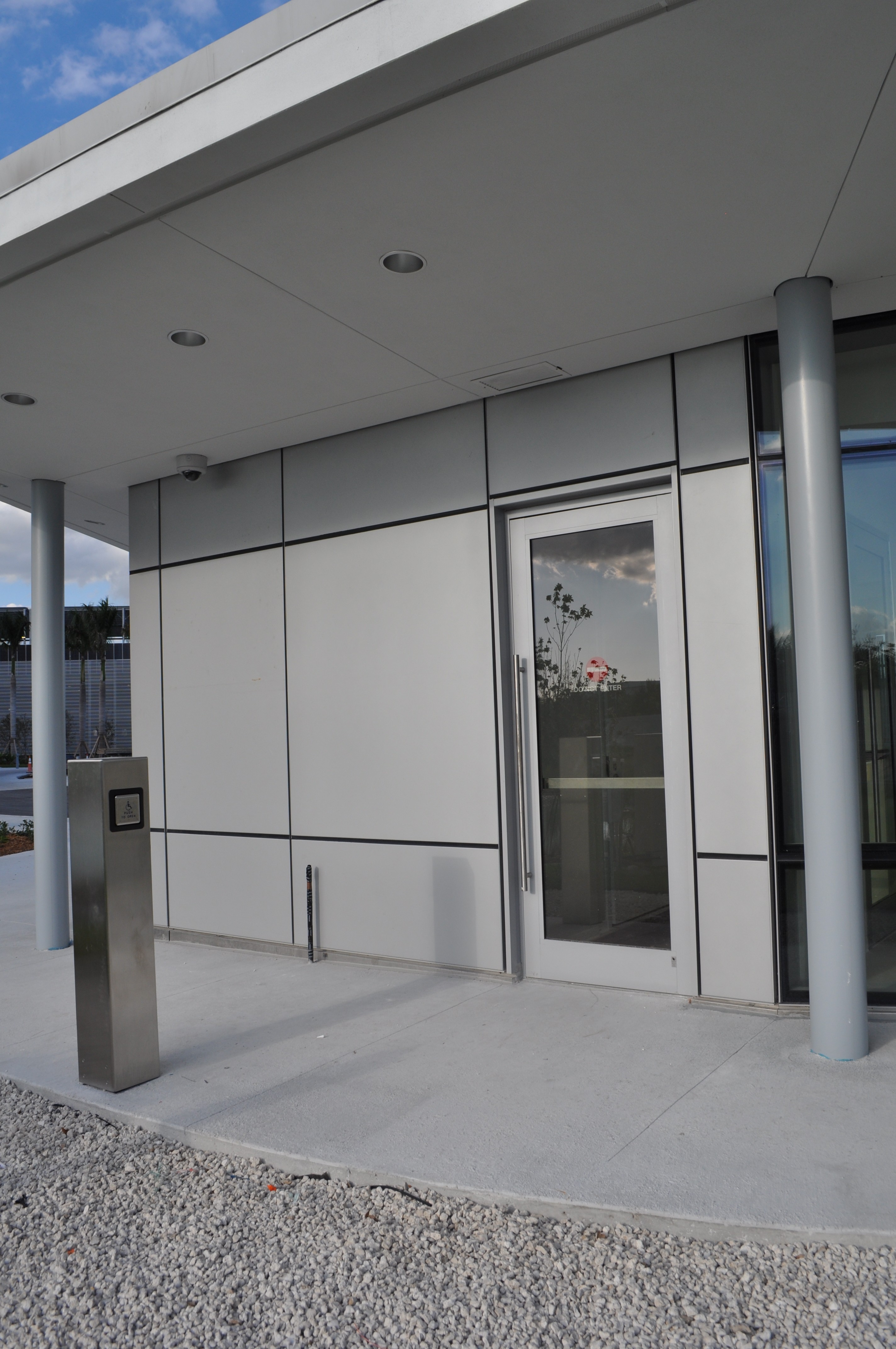

Project Gallery
