PrivacyVue®- Electrified Switchable / Privacy Glass Panel

PrivacyVue® provides architects and designers numerous combinations of options to create unique wall and door configurations. The ability to create a custom glazing system with Dash Door’s design team is easy. PrivacyVue® glass and accessories are used in the industry’s most reputable interior wall and door systems as represented and distributed directly from the manufacturers by Dash Door for over 60 years. The combination of these systems as modified to integrate with PrivacyVue® creates a turn-key single source solution for each application.





TECHNICAL DATA:





GLASS COLOR:

Clear, low‐iron “Starphire”, bronze, gray, green tint



GLASS TYPE:

Annealed, heat/chemical strengthened, tempered (All laminated)



THICKNESS:

Interior:  5/16″ (8 mm), 7/16″ (11 mm), 9/16″ (14 mm)

Door:  7/16″ (11 mm), 9/16″ (14 mm)

Exterior:   1″+ (25mm) insulating glass unit

9/16″ tempered outer glass + 3/8″ airspace + 7/16″ or 9/16″ laminated PrivacyVue® glass



SIZE (max):

Up to 70”x120” (1,778 mm x 3,048 mm)



SHAPE:

Any shape, including holes anywhere



ELECTRICAL:

Driving Voltage: 65 volts AC

Current: less than 20 mA/ft2 (215 mA/m2)

Power: less than 0.5 W/ft2 (5 W/m2)



SWITCHING TIME:

Approx. 100 milliseconds at room temperature



OPTICAL:

Haze:                                       approx. 7%

Transmission (visible):            approx. 75%

View angle:                             approx. 150◦

Scattering effectiveness:        approx. 1 inch



LIFE:

Greater than 10 years (indoors) (when used, installed, and stored properly per the usage, storage and installation specifications referenced herein). Claim is supported by manufacturer’s testing data.

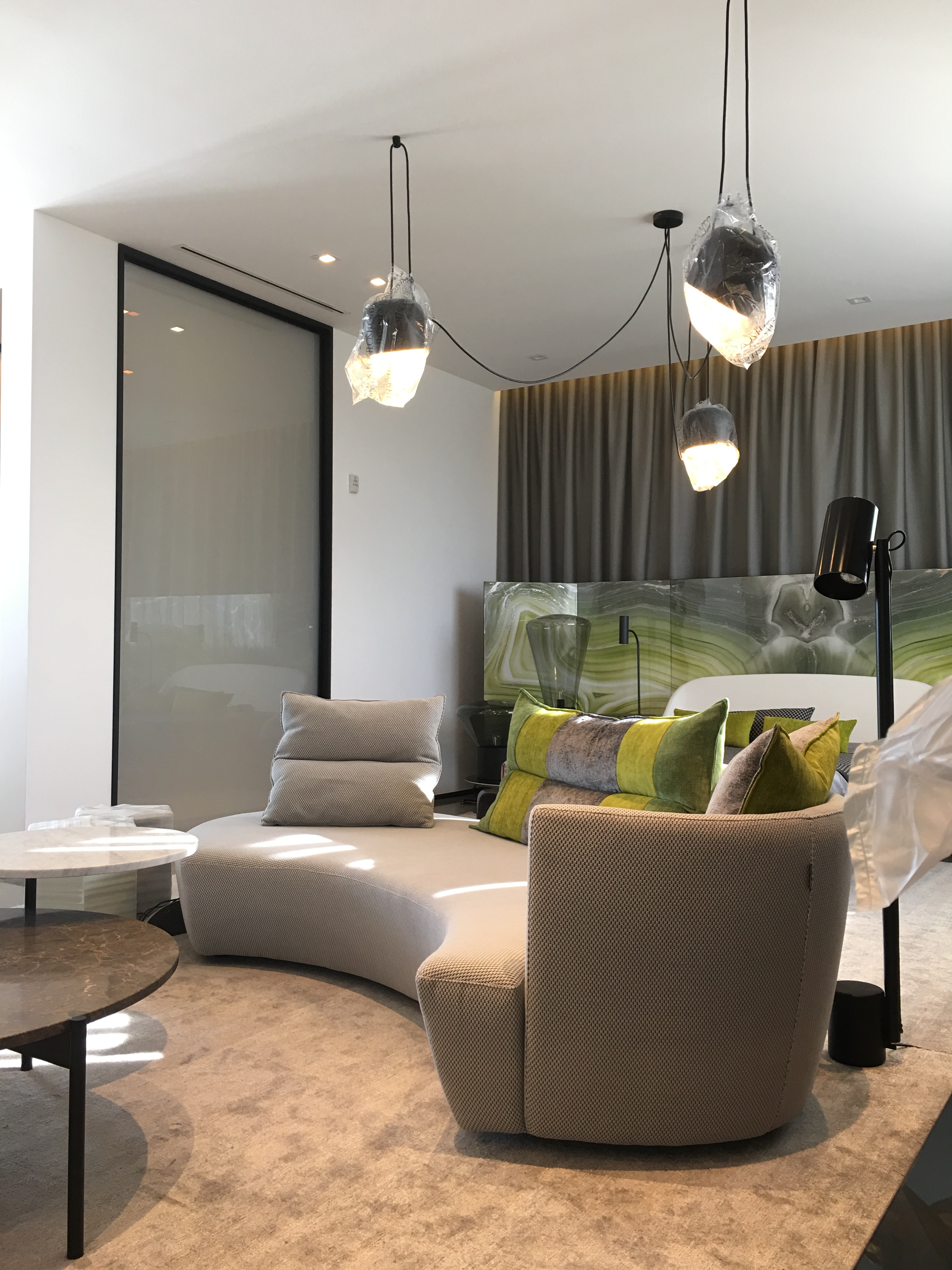

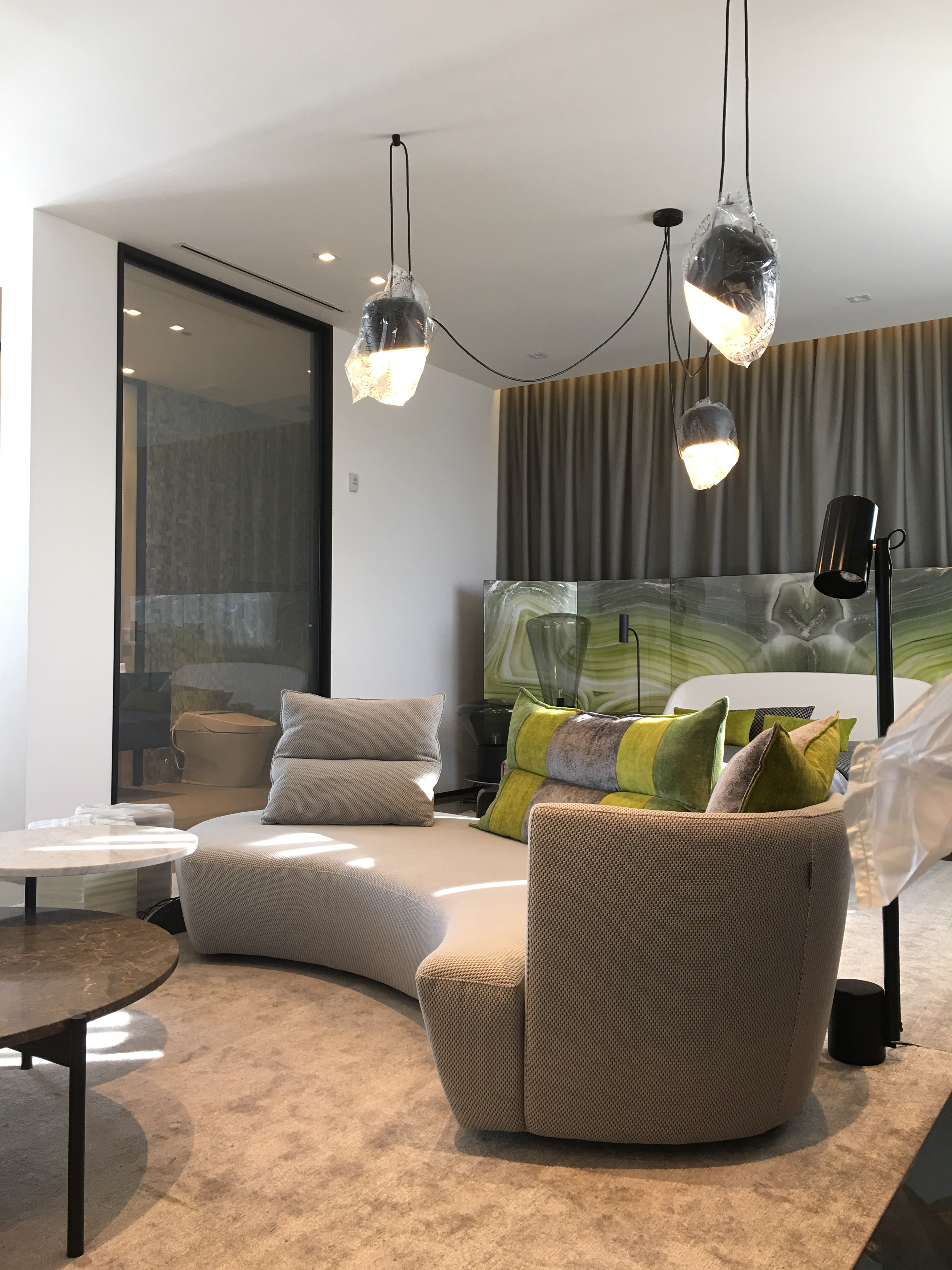

Project Gallery
